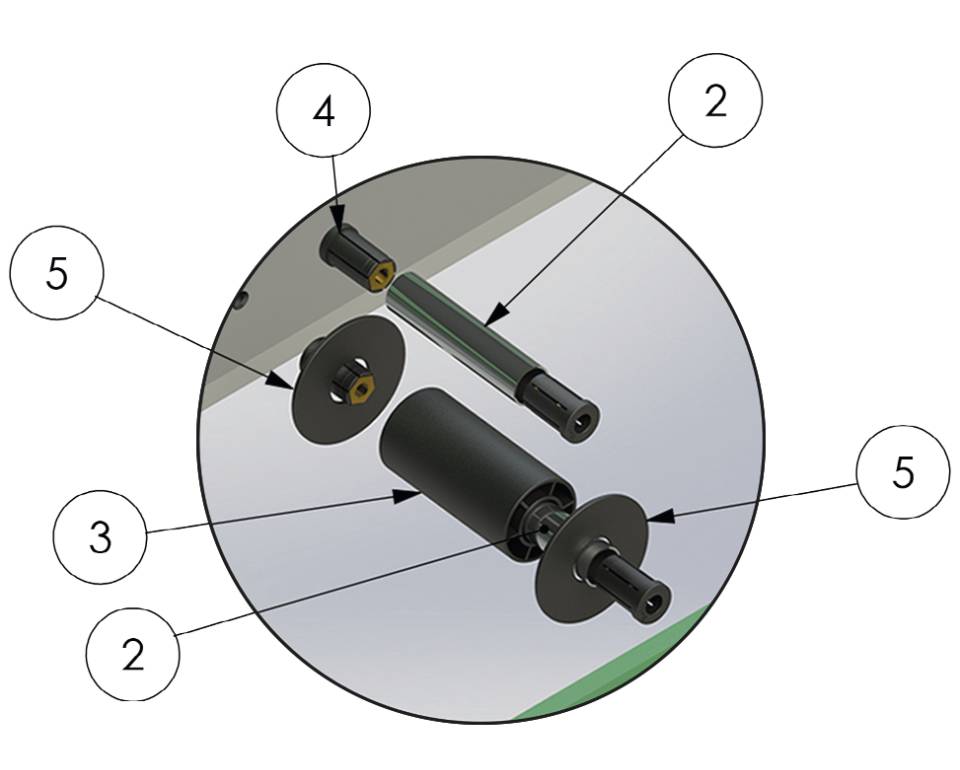

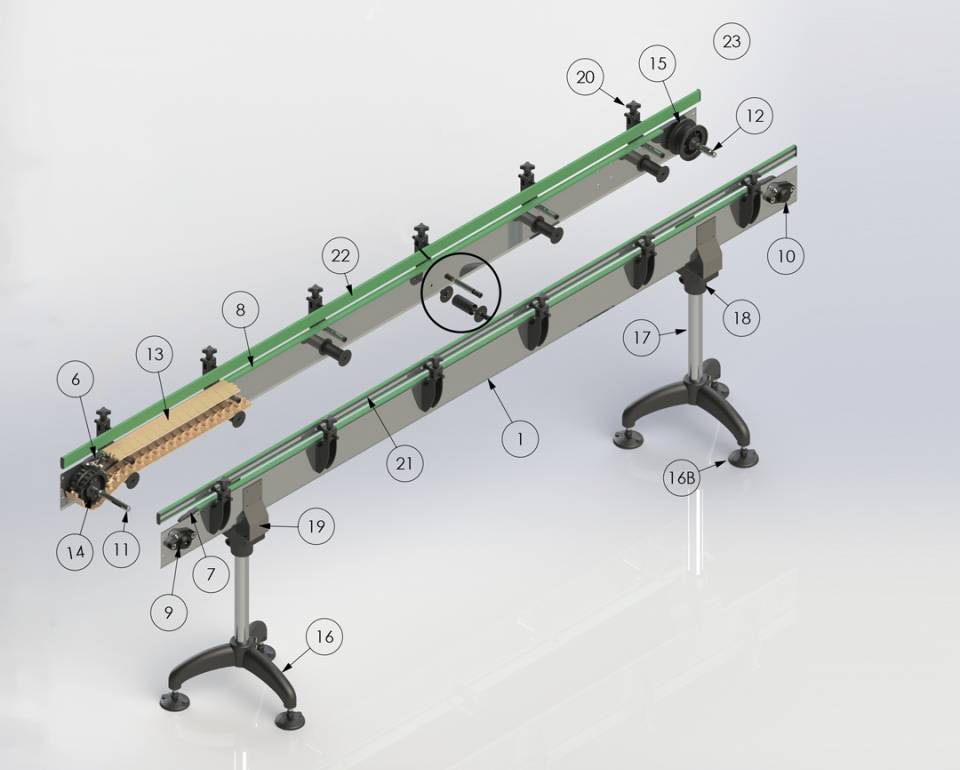

APPLICATION 1 - Straight running coveyor Btop 820 series
Note: The list of items above was based on a 3-meter long conveyor. Note: Suggested Assembly Measurements: - 500mm between the separator tubes. - 2000mm between the support feet. - 500mm between the side supports of the platform. Note: These measurements may vary depending on the product being transported.
Code
Description
Quantity
1
600150
Calha J h 150mm Inox 304
6 mts
2
700250
Tubo INOX SAE 304 ø 19,5 x 1,00 Decapado
1,1 mt
3
024175
B405 - Rolete de retorno Unico 40x20x84mm
6 pçs
4
024301
Calha - Bucha ExpansivaT19,05x1,00mm
24 pçs
5
024176
B405 - Flange Rolete de retorno único
12 pçs
6
024500
Calha - Unha de apoio esquerda
2 pçs
7
024501
Calha - Unha de apoio direita
2 pçs
8
005095
Perfil PZC 20x10 PEAD verde
6 mts
9
025530
Mancal FL Aberto ø20
1 pç
10
025532
Mancal FL fechado ø20
3 pçs
11
924900
Eixo INOX de acionamento ø20 K325-1
1 pç
12
924905
Eixo INOX de retorno ø20 K325-1
1 pç
13
001604
BTOP 820 K325 POM marrom
6 mts
14
003446
Roda 820 PA6FV Bipartida Z21ø25 c/chv
1 pç
15
007025
Carretel Bipartido Z21 ø25mm
1 pç
16
024119
B101 - Pé triplo T48,30mm
2 pçs
17
024100
B105 - Pé Nivelador fuso PA6 L100 + Sap ø80 + porca
6 pçs
18
700252
Tubo INOX SAE 304 ø48,30x1,65 PL/EX
2 mts
19
024150
B251 - Cabeçal de apoio inferior T48,30mm
2 pçs
20
600
Calha - Suporte calha K325 1 via INOX 430
2 pçs
21
019521
B2405 - SLVA Pqsem resalto + Mani + Olhal INOX + HAPA6D 1/2x90 M8
12 cjs
22
041113
Perfil PM grande 7 x 10 x 38 Alumínio
6 mts
23
005144
Perfil PG 43 x 34 clip verde P/ PM gande
6 mts
24
024516
Perfil PM GRD - Tampa
4 pçs
